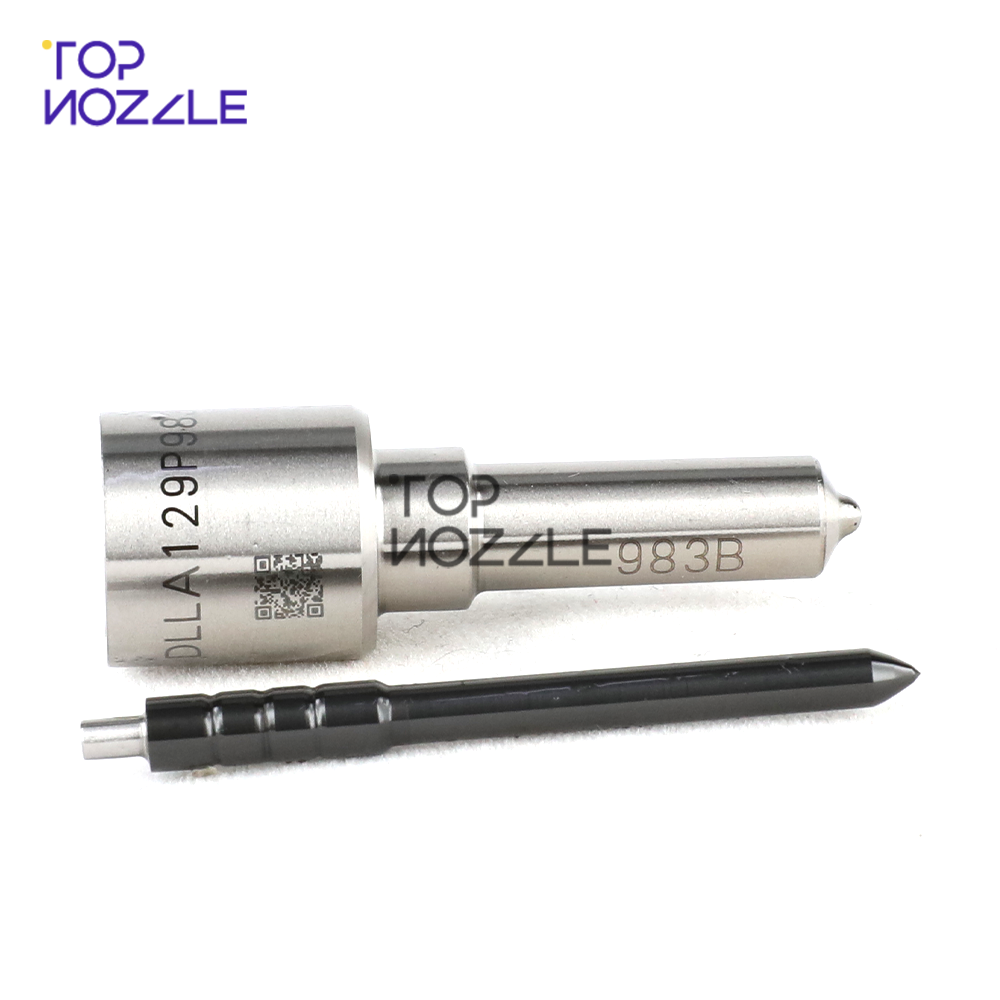

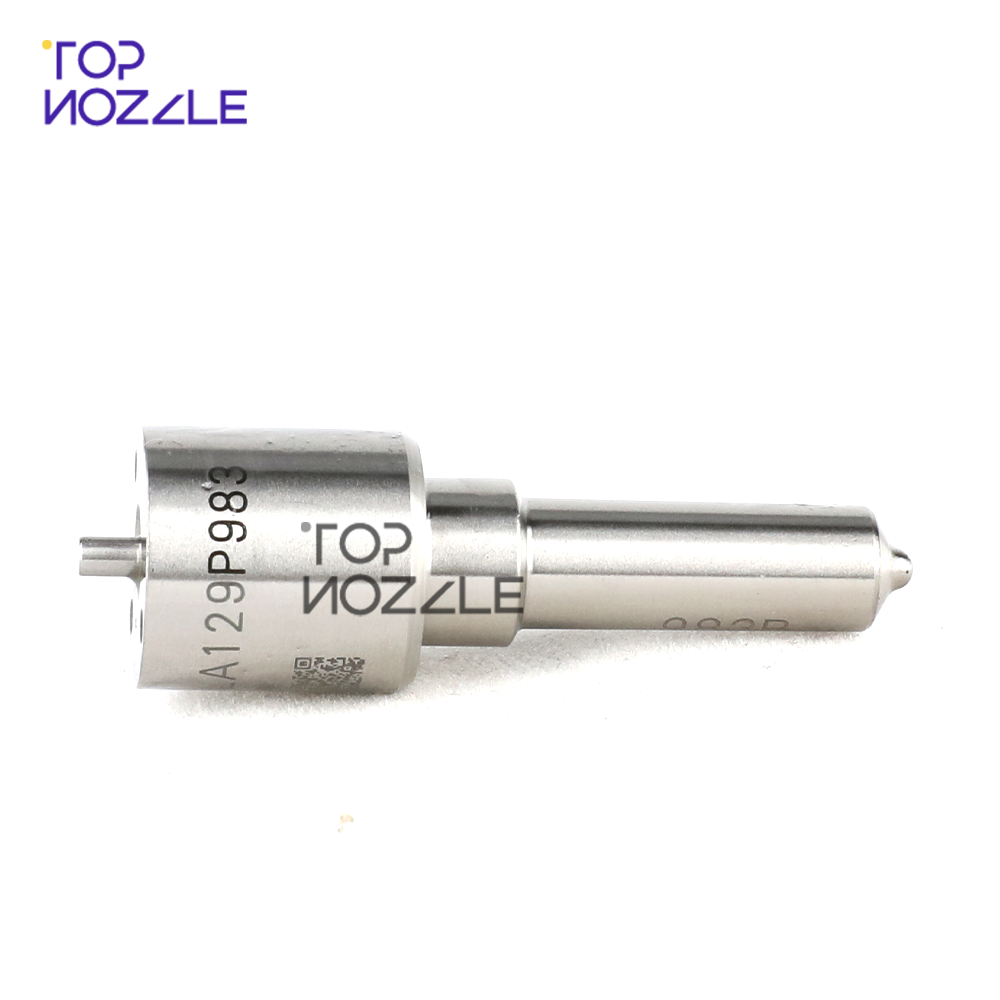

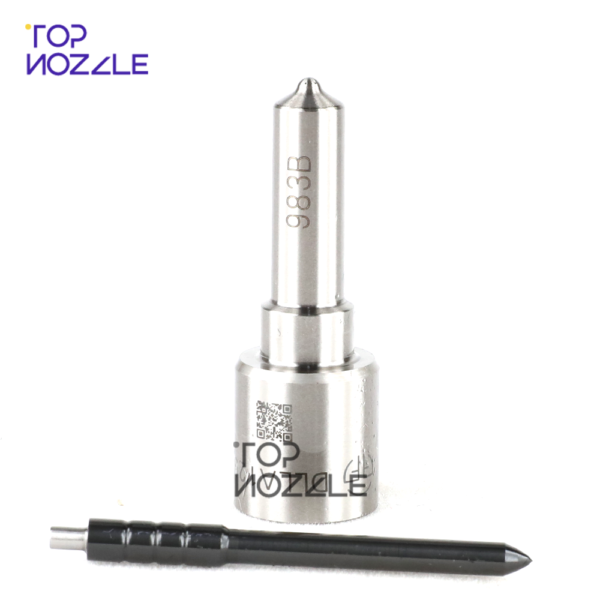

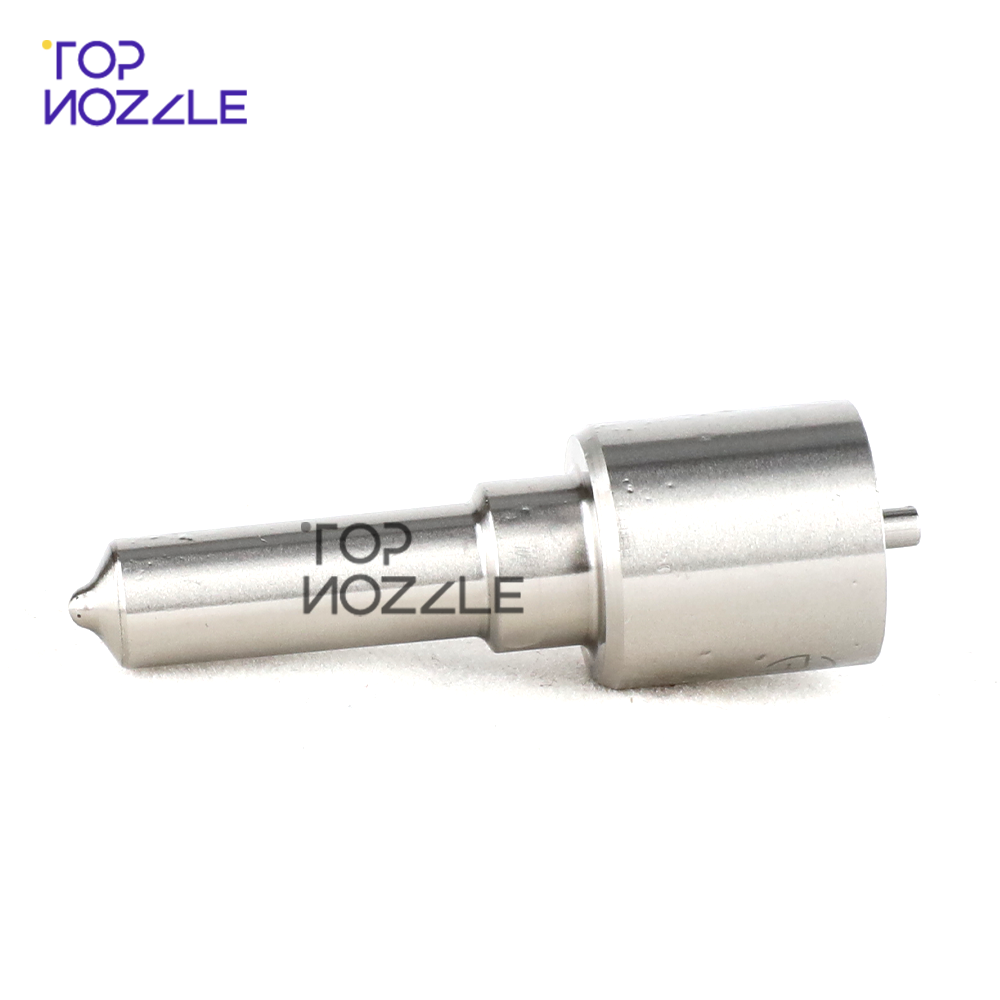

1.CRDI Injector Nozzle DLLA129P983 Basic Information

Title	China Made New Diesel Common Rail CRDI Injector Nozzle DLLA129P983	Quality
SKU1	G1X9LLA129P983	XINGMA
SKU2	G1Z17LLA129P983	LIWEI
SKU3	L10000B2B29P983	China made new

2.CRDI Injector Nozzle DLLA129P983 Common Written Part Number

Injector Nozzle Order Number	Injector Nozzle Engraved Number
093400-9830	DLLA129P983

3.CRDI Injector Nozzle DLLA129P983 Application Information for Injectors

• CRDI Injector Nozzle DLLA129P983 Application for Injectors Part Number

Injector Part Number	Replace Part Number	Replace Part Number	Replace Part Number	OEM	OEM
095000-6880	G2	/	/	/	/
095000-8810	G2	/	/	/	/

• CRDI Injector Nozzle DLLA129P983 Car Model Matching Information

Injector Part Number	Car Number
095000-6880	RE532216/ RE533454 RE546780/SE501934
095000-8810	/

• CRDI Injector Nozzle DLLA129P983 Part Number Common Writing

093400-9830, DLLA129P983, DLLA 129 P 983, DLLA129 P 983, DLLA129P 983, DLLA 129 P983, DLLA 129P983, DLLA 129P 983



4.CRDI Injector Nozzle DLLA129P983 Specifications and Dimensions Parameters

Injector Nozzle Size： 6 cm*1.5cm *1.5 cm

Injector Nozzle Tube Size：7 cm *2 cm *2 cm

Injector Nozzle Net Weight：0.03kg

Injector Nozzle Box Size (10 PCS/Box)：10 cm *8 cm *4cm

Injector Nozzle Gross Weight  (10 PCS/Box) ：0.3kg

Injector Nozzle Quality：China Made New Injector Nozzle

Injector Nozzle MOQ：10 PCS



5.CRDI Injector Nozzle DLLA129P983 Quality Control

• Injector Nozzle Testing

All parts of the injector nozzle are subjected to precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.

• Injector Nozzle Inspection

The factory inspection of the injector nozzle is undergone full inspection, random inspection, and batch inspection three inspections. Different brands of test benches are used to test the same injector nozzle for a total of no less than three times for factory inspection, and the fuel injector installation testing environment are progressed in dust-free workshop.

• Injector Nozzle Installation

When matching the valve cap and valve steam, Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each valve assembly meets the factory standards and use standards.



6.CRDI Injector Nozzle DLLA129P983 Shipping Ways  

Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations out of China’s areas： DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.



7.CRDI Injector Nozzle DLLA129P983 Lead Time 

Lead time：Send out within 3 – 7 working days after receiving payment（Except for special products and special cases）.



8.CRDI Injector Nozzle DLLA129P983 Installation Precautions

• Clean the injector nozzlein an ultrasonic cleaner for 3-5 minutes before installation, so as to make the stains, dust, rust-proof oil oxides, paraffin base, naphthenic base, intermediate base, salt, lead naphthenate, zinc naphthenate, sodium petroleum sulfonate, barium petroleum sulfonate, calcium petroleum sulfonate, tallow diamine trioleate, rosinamine on the surface of the injector nozzle fall off.
• Use compressed air to clean the cleaning fluid attached to the surface of the injector nozzleafter cleaning, and clean it up to the standard of use.



9.CRDI Injector Nozzle DLLA129P983 Storage Standard

• Choose a suitable storage place

The warehouse and cargo yard where the injector nozzles are stored should be kept clean and dry, and away from the factory buildings that generate harmful gases and dust; do not mix with acid, alkali, salt and other substances; the storage place should have a good drainage system; the cargo yard should be flattened with gravel or furnace ash etc. to enhance the water permeability of the surface layer to keep the reservoir area dry.

• Strict requirements of warehousing

Strict inspections should be carried out when the injector nozzles are put into storage, the surface cleaning work should be done well to remove water traces, oil stains, ash and other dirt, remove the rust and do anti-rust treatment in time. Packaged nozzles must be protected from damage.

• Keep the warehouse dry and preventing moisture

The relative humidity is usually below 70% for the injector nozzles placed in the room, and the

corrosion of the injector nozzles is significantly reduced.

Injector nozzles must be stored in the warehouse, and they are forbidden to store in the same

warehouse with commodities with high water content.

• Stack Properly

After the injector nozzle is exposed to rain, the corrosion rate will increase significantly. The purpose of sealing is to isolate the injector from rainwater and humid air, so the warehouse window should be checked in time to avoid rainwater entering the warehouse.



If the injector nozzle package is damaged, it should be repaired or replaced; when the package is damp, the packaging material should be dried; if the original anti-corrosion and oil applied at the factory is found to be damaged or dried up, it should be cleaned and re-applied oil in time.

It is forbidden to leave the injector nozzle exposed in the air for a long time.

It is forbidden to store acid, alkali, salt and other substances together with the injector nozzle.

The unpacked diesel injector nozzle must be rust-proof during secondary storage.



10.CRDI Injector Nozzle DLLA129P983 Packing

Domestic express packaging：Usually wrapped in waterproof scotch tape, such as picture No.1.

International express packaging：Wrapped with waterproof yellow tape After wrapping the black protective film, such as picture No. 2.

Pallet Shipping：Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, such as picture No. 3,

Also, the products can be packaged according to customers’ requirements.

• The packing tray is made of plastic and can be recycled.
• Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.
• Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, andwhite wrapping protective film to avoid personal injury.

Pic No. 1	Pic No. 2	Pic No. 3
Domestic express packaging：Wrapped by Transparent tape	International express packaging：Wrapped with yellow tape after wrapping black protective film	Pallet Shipping：Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties.
